Backing up WarehousePG with `gpbackup` and `gprestore`

Associated Topics

gpbackup and gprestore are WarehousePG utilities that create and restore backup sets in parallel for WarehousePG. By default, gpbackup stores only the object metadata files and DDL files for a backup in the WarehousePG Coordinator data directory. WarehousePG segments use the COPY ... ON SEGMENT command to store their data for backed-up tables in compressed CSV data files, located in each segment’s backups directory.

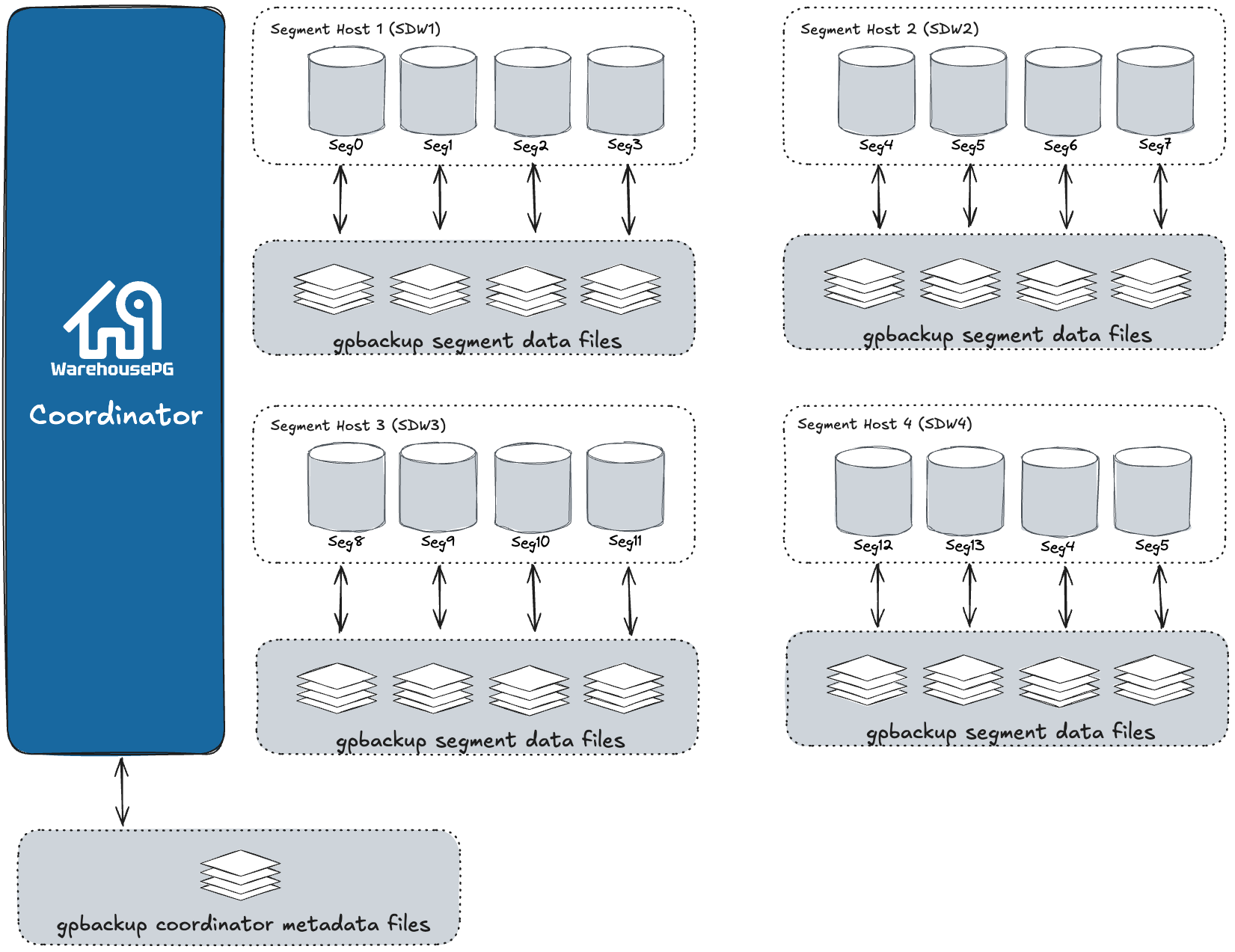

Parallel Backup with gpbackup and gprestore

Parallel Restore Using Parallel Backup Files

The backup metadata files contain all of the information that gprestore needs to restore a full backup set in parallel. Backup metadata also provides the framework for restoring only individual objects in the data set, along with any dependent objects, in future versions of gprestore. (See Understanding Backup Files for more information.) Storing the table data in CSV files also provides opportunities for using other restore utilities, such as gpload, to load the data either in the same cluster or another cluster. By default, one file is created for each table on the segment. You can specify the --leaf-partition-data option with gpbackup to create one data file per leaf partition of a partitioned table, instead of a single file. This option also enables you to filter backup sets by leaf partitions.

Each gpbackup task uses a single transaction in WarehousePG. During this transaction, metadata is backed up on the Coordinator host, and data for each table on each segment host is written to CSV backup files using COPY ... ON SEGMENT commands in parallel. The backup process acquires an ACCESS SHARE lock on each table that is backed up.

For additional documenation, visit the gpbackup and gprestore cluster utilities reference page.

Objects in a backup set
Backup and Restore Workflow
Backup History Database
Using the --include and --exclude filters
Setting Up Email Alerts
Backup files layout
Return Codes
Supported WHPG versions
Limitations

Objects in a backup set

Objects Included in a Backup or Restore The following table lists the objects that are backed up and restored with gpbackup and gprestore.

Database objects are backed up for the database you specify with the --dbname option.

Global objects (WarehousePG Cluster objects) are also backed up by default, but they are restored only if you include the --with-globals option when calling gprestore. Conversely, the gpbackup --without-globals will skip the backup of global objects

Objects that are backed up and restored

Database objects
Aggregates	Readable External Tables ¹
Casts	Rules
Comments	Schemas ⁴
Conversions	Sequences
Domains	Session-level configuration parameter settings (GUCs)
Extensions	Table statistics ²
Functions	Tables
Indexes	Text search parsers, dictionaries, templates, and configurations
Materialized Views ¹	Triggers ³
Operators, operator families, and operator classes	Types
Owners	Views
Procedural language extensions	Writable External Tables ¹
Protocols

^{1. DDL Only}
^{2. when --with-stats flag is used}
^{3. While WarehousePG does not support triggers, trigger definitions present in the database are backed up and restored}
^{4. The following schemas are not part of the backup set: gp_toolkit, information_schema, pg_aoseg, pg_bitmapindex, pg_catalog, pg_toast*, pg_temp*}

Global objects	_
Databases	Resource queue definitions
Database-wide configuration parameter settings (GUCs)	Roles
GRANT assignments of roles to databases	Tablespaces
Resource group definitions

When restoring to an existing database, gprestore assumes the public schema exists when restoring objects to the public schema. When restoring to a new database (with the --create-db option), gprestore creates the public schema automatically when creating a database with the CREATE DATABASE command. The command uses the template0 database that contains the public schema.

Backup and Restore Workflow

Full Backup

This command will take a full backup (metadata and user data) using zstandard compression

$ gpbackup --dbname <database_name> --compression-type zstd

Example:

[gpadmin@whpg_cdw ~]$ gpbackup --dbname ww_sales --compression-type zstd
20250514:20:27:13 gpbackup:gpadmin:whpg_cdw:027069-[INFO]:-gpbackup version = 1.30.5
20250514:20:27:13 gpbackup:gpadmin:whpg_cdw:027069-[INFO]:-Greenplum Database Version = 6.27.1 build commit:ab5a612bfdc355ad2d601860dfb70a47778c8dd7
20250514:20:27:13 gpbackup:gpadmin:whpg_cdw:027069-[INFO]:-Starting backup of database ww_sales
20250514:20:27:14 gpbackup:gpadmin:whpg_cdw:027069-[INFO]:-Backup Timestamp = 20250514202713
20250514:20:27:14 gpbackup:gpadmin:whpg_cdw:027069-[INFO]:-Backup Database = ww_sales
20250514:20:27:14 gpbackup:gpadmin:whpg_cdw:027069-[INFO]:-Gathering table state information
20250514:20:27:14 gpbackup:gpadmin:whpg_cdw:027069-[INFO]:-Acquiring ACCESS SHARE locks on tables
Locks acquired:  57 / 57 [==============================================================] 100.00% 0s
20250514:20:27:14 gpbackup:gpadmin:whpg_cdw:027069-[INFO]:-Gathering additional table metadata
20250514:20:27:14 gpbackup:gpadmin:whpg_cdw:027069-[INFO]:-Getting partition definitions
20250514:20:27:14 gpbackup:gpadmin:whpg_cdw:027069-[INFO]:-Getting storage information
20250514:20:27:14 gpbackup:gpadmin:whpg_cdw:027069-[INFO]:-Getting child partitions with altered schema
20250514:20:27:14 gpbackup:gpadmin:whpg_cdw:027069-[INFO]:-Metadata will be written to /data/coordinator/gpseg-1/backups/20250514/20250514202713/gpbackup_20250514202713_metadata.sql
20250514:20:27:14 gpbackup:gpadmin:whpg_cdw:027069-[INFO]:-Writing global database metadata
20250514:20:27:14 gpbackup:gpadmin:whpg_cdw:027069-[INFO]:-Global database metadata backup complete
20250514:20:27:14 gpbackup:gpadmin:whpg_cdw:027069-[INFO]:-Writing pre-data metadata
20250514:20:27:14 gpbackup:gpadmin:whpg_cdw:027069-[INFO]:-Pre-data metadata metadata backup complete
20250514:20:27:14 gpbackup:gpadmin:whpg_cdw:027069-[INFO]:-Writing post-data metadata
20250514:20:27:14 gpbackup:gpadmin:whpg_cdw:027069-[INFO]:-Post-data metadata backup complete
20250514:20:27:14 gpbackup:gpadmin:whpg_cdw:027069-[INFO]:-Writing data to file
Tables backed up:  33 / 33 [============================================================] 100.00% 7s
20250514:20:27:22 gpbackup:gpadmin:whpg_cdw:027069-[INFO]:-Data backup complete
20250514:20:27:22 gpbackup:gpadmin:whpg_cdw:027069-[INFO]:-Skipped data backup of 24 external/foreign table(s).
20250514:20:27:22 gpbackup:gpadmin:whpg_cdw:027069-[INFO]:-See /home/gpadmin/gpAdminLogs/gpbackup_20250514.log for a complete list of skipped tables.
20250514:20:27:23 gpbackup:gpadmin:whpg_cdw:027069-[INFO]:-/home/gpadmin/gp_email_contacts.yaml list found, /data/coordinator/gpseg-1/backups/20250514/20250514202713/gpbackup_20250514202713_report will be sent
20250514:20:28:23 gpbackup:gpadmin:whpg_cdw:027069-[INFO]:-Beginning cleanup
20250514:20:28:23 gpbackup:gpadmin:whpg_cdw:027069-[INFO]:-Cleanup complete
20250514:20:28:23 gpbackup:gpadmin:whpg_cdw:027069-[INFO]:-Backup completed successfully

The above command creates a file that contains global and database-specific metadata on the WarehousePG Coordinator host in the default directory, $COORDINATOR_DATA_DIRECTORY/backups/<YYYYMMDD>/<YYYYMMDDHHMMSS>/.

For example:

[gpadmin@whpg_cdw 20250514202713]$ ls -ltr /data/coordinator/gpseg-1/backups/20250514/20250514202713
total 2112
-r--r--r-- 1 gpadmin gpadmin 2114041 May 14 20:27 gpbackup_20250514202713_metadata.sql
-r--r--r-- 1 gpadmin gpadmin   35787 May 14 20:27 gpbackup_20250514202713_toc.yaml
-r--r--r-- 1 gpadmin gpadmin    1437 May 14 20:27 gpbackup_20250514202713_config.yaml
-r--r--r-- 1 gpadmin gpadmin    1833 May 14 20:27 gpbackup_20250514202713_report

By default, each segment stores each table’s data for the backup in a separate compressed CSV file in <seg_dir>/backups/<YYYYMMDD>/<YYYYMMDDHHMMSS>/:

[gpadmin@mdw 20250514202713]$ ls -ltr /data/primary/gpseg0/backups/20250514/20250514202713
total 125764
-rw------- 1 gpadmin gpadmin      494 May 14 20:27 gpbackup_0_20250514202713_65582.zst
-rw------- 1 gpadmin gpadmin   174123 May 14 20:27 gpbackup_0_20250514202713_67854.zst
-rw------- 1 gpadmin gpadmin  3057086 May 14 20:27 gpbackup_0_20250514202713_67861.zst
-rw------- 1 gpadmin gpadmin 32450223 May 14 20:27 gpbackup_0_20250514202713_70343.zst
-rw------- 1 gpadmin gpadmin  1994875 May 14 20:27 gpbackup_0_20250514202713_71070.zst
-rw------- 1 gpadmin gpadmin   475745 May 14 20:27 gpbackup_0_20250514202713_71077.zst
-rw------- 1 gpadmin gpadmin  3006034 May 14 20:27 gpbackup_0_20250514202713_71084.zst
-rw------- 1 gpadmin gpadmin   528895 May 14 20:27 gpbackup_0_20250514202713_71091.zst
-rw------- 1 gpadmin gpadmin     8945 May 14 20:27 gpbackup_0_20250514202713_71098.zst
-rw------- 1 gpadmin gpadmin       74 May 14 20:27 gpbackup_0_20250514202713_71105.zst
-rw------- 1 gpadmin gpadmin 19507368 May 14 20:27 gpbackup_0_20250514202713_71112.zst
-rw------- 1 gpadmin gpadmin   596995 May 14 20:27 gpbackup_0_20250514202713_71326.zst
-rw------- 1 gpadmin gpadmin     4688 May 14 20:27 gpbackup_0_20250514202713_71333.zst
-rw------- 1 gpadmin gpadmin      251 May 14 20:27 gpbackup_0_20250514202713_71340.zst
-rw------- 1 gpadmin gpadmin      289 May 14 20:27 gpbackup_0_20250514202713_71347.zst
-rw------- 1 gpadmin gpadmin      638 May 14 20:27 gpbackup_0_20250514202713_71354.zst
-rw------- 1 gpadmin gpadmin  4729580 May 14 20:27 gpbackup_0_20250514202713_71361.zst
-rw------- 1 gpadmin gpadmin 44197780 May 14 20:27 gpbackup_0_20250514202713_71575.zst
-rw------- 1 gpadmin gpadmin   198475 May 14 20:27 gpbackup_0_20250514202713_73562.zst
-rw------- 1 gpadmin gpadmin      224 May 14 20:27 gpbackup_0_20250514202713_73569.zst
-rw------- 1 gpadmin gpadmin      634 May 14 20:27 gpbackup_0_20250514202713_73576.zst
-rw------- 1 gpadmin gpadmin  1245122 May 14 20:27 gpbackup_0_20250514202713_73583.zst
-rw------- 1 gpadmin gpadmin 16500913 May 14 20:27 gpbackup_0_20250514202713_73716.zst
-rw------- 1 gpadmin gpadmin     1455 May 14 20:27 gpbackup_0_20250514202713_74227.zst
-rw------- 1 gpadmin gpadmin       13 May 14 20:27 gpbackup_0_20250514202713_74306.zst
-rw------- 1 gpadmin gpadmin       13 May 14 20:27 gpbackup_0_20250514202713_74312.zst
-rw------- 1 gpadmin gpadmin      302 May 14 20:27 gpbackup_0_20250514202713_74318.zst
-rw------- 1 gpadmin gpadmin      278 May 14 20:27 gpbackup_0_20250514202713_74324.zst
-rw------- 1 gpadmin gpadmin      353 May 14 20:27 gpbackup_0_20250514202713_74330.zst
-rw------- 1 gpadmin gpadmin       13 May 14 20:27 gpbackup_0_20250514202713_74336.zst
-rw------- 1 gpadmin gpadmin       13 May 14 20:27 gpbackup_0_20250514202713_74342.zst
-rw------- 1 gpadmin gpadmin       22 May 14 20:27 gpbackup_0_20250514202713_74348.zst
-rw------- 1 gpadmin gpadmin      441 May 14 20:27 gpbackup_0_20250514202713_74351.zst

To consolidate all backup files into a single directory, include the --backup-dir option with an absolute path to the location you wish to backup to. Optionally, when performing a backup, the --single-data-file option may be used in situations where the additional overhead of multiple files might be prohibitive such as third party storage solutions.

The command below shows both options in use


[gpadmin@whpg_cdw ~]$ gpbackup --dbname ww_sales --single-data-file --no-compression --backup-dir /tmp/single_file
20250515:18:22:09 gpbackup:gpadmin:whpg_cdw:032298-[INFO]:-gpbackup version = 1.30.5
20250515:18:22:09 gpbackup:gpadmin:whpg_cdw:032298-[INFO]:-Greenplum Database Version = 6.27.1 build commit:ab5a612bfdc355ad2d601860dfb70a47778c8dd7
20250515:18:22:09 gpbackup:gpadmin:whpg_cdw:032298-[INFO]:-Starting backup of database ww_sales
20250515:18:22:09 gpbackup:gpadmin:whpg_cdw:032298-[INFO]:-Backup Timestamp = 20250515182209
20250515:18:22:09 gpbackup:gpadmin:whpg_cdw:032298-[INFO]:-Backup Database = ww_sales
20250515:18:22:09 gpbackup:gpadmin:whpg_cdw:032298-[INFO]:-Gathering table state information
20250515:18:22:09 gpbackup:gpadmin:whpg_cdw:032298-[INFO]:-Acquiring ACCESS SHARE locks on tables
Locks acquired:  57 / 57 [==============================================================] 100.00% 0s
20250515:18:22:09 gpbackup:gpadmin:whpg_cdw:032298-[INFO]:-Gathering additional table metadata
20250515:18:22:09 gpbackup:gpadmin:whpg_cdw:032298-[INFO]:-Getting partition definitions
20250515:18:22:09 gpbackup:gpadmin:whpg_cdw:032298-[INFO]:-Getting storage information
20250515:18:22:09 gpbackup:gpadmin:whpg_cdw:032298-[INFO]:-Getting child partitions with altered schema
20250515:18:22:09 gpbackup:gpadmin:whpg_cdw:032298-[INFO]:-Metadata will be written to /tmp/single_file/gpseg-1/backups/20250515/20250515182209/gpbackup_20250515182209_metadata.sql
20250515:18:22:09 gpbackup:gpadmin:whpg_cdw:032298-[INFO]:-Writing global database metadata
20250515:18:22:09 gpbackup:gpadmin:whpg_cdw:032298-[INFO]:-Global database metadata backup complete
20250515:18:22:09 gpbackup:gpadmin:whpg_cdw:032298-[INFO]:-Writing pre-data metadata
20250515:18:22:10 gpbackup:gpadmin:whpg_cdw:032298-[INFO]:-Pre-data metadata metadata backup complete
20250515:18:22:10 gpbackup:gpadmin:whpg_cdw:032298-[INFO]:-Writing post-data metadata
20250515:18:22:10 gpbackup:gpadmin:whpg_cdw:032298-[INFO]:-Post-data metadata backup complete
20250515:18:22:10 gpbackup:gpadmin:whpg_cdw:032298-[INFO]:-Writing data to file
Tables backed up:  33 / 33 [============================================================] 100.00% 8s
20250515:18:22:18 gpbackup:gpadmin:whpg_cdw:032298-[INFO]:-Data backup complete
20250515:18:22:18 gpbackup:gpadmin:whpg_cdw:032298-[INFO]:-Skipped data backup of 24 external/foreign table(s).
20250515:18:22:18 gpbackup:gpadmin:whpg_cdw:032298-[INFO]:-See /home/gpadmin/gpAdminLogs/gpbackup_20250515.log for a complete list of skipped tables.
20250515:18:22:19 gpbackup:gpadmin:whpg_cdw:032298-[INFO]:-Found neither /usr/local/greenplum-db-6.27.1/bin/gp_email_contacts.yaml nor /home/gpadmin/gp_email_contacts.yaml
20250515:18:22:19 gpbackup:gpadmin:whpg_cdw:032298-[INFO]:-Email containing gpbackup report /tmp/single_file/gpseg-1/backups/20250515/20250515182209/gpbackup_20250515182209_report will not be sent
20250515:18:22:19 gpbackup:gpadmin:whpg_cdw:032298-[INFO]:-Beginning cleanup
20250515:18:22:24 gpbackup:gpadmin:whpg_cdw:032298-[INFO]:-Cleanup complete
20250515:18:22:24 gpbackup:gpadmin:whpg_cdw:032298-[INFO]:-Backup completed successfully

The contents of the corresponding backup directories show the single data file, and it's associated table of contents files (toc). Both files are required for a successful restore.

[gpadmin@whpg_cdw ~]$ ls -ltr /tmp/single_file/gp*/backups/*/*

/tmp/single_file/gpseg0/backups/20250515/20250515182209:
total 407012
-rw-rw-r-- 1 gpadmin gpadmin 416771752 May 15 18:22 gpbackup_0_20250515182209
-r--r--r-- 1 gpadmin gpadmin      1864 May 15 18:22 gpbackup_0_20250515182209_toc.yaml

/tmp/single_file/gpseg1/backups/20250515/20250515182209:
total 434396
-rw-rw-r-- 1 gpadmin gpadmin 444811433 May 15 18:22 gpbackup_1_20250515182209
-r--r--r-- 1 gpadmin gpadmin      1864 May 15 18:22 gpbackup_1_20250515182209_toc.yaml

/tmp/single_file/gpseg2/backups/20250515/20250515182209:
total 407260
-rw-rw-r-- 1 gpadmin gpadmin 417025293 May 15 18:22 gpbackup_2_20250515182209
-r--r--r-- 1 gpadmin gpadmin      1864 May 15 18:22 gpbackup_2_20250515182209_toc.yaml

/tmp/single_file/gpseg-1/backups/20250515/20250515182209:
total 2112
-r--r--r-- 1 gpadmin gpadmin 2114041 May 15 18:22 gpbackup_20250515182209_metadata.sql
-r--r--r-- 1 gpadmin gpadmin   35787 May 15 18:22 gpbackup_20250515182209_toc.yaml
-r--r--r-- 1 gpadmin gpadmin    1451 May 15 18:22 gpbackup_20250515182209_config.yaml
-r--r--r-- 1 gpadmin gpadmin    1872 May 15 18:22 gpbackup_20250515182209_report

Full Restore

To use gprestore to restore from a backup set, you must use the --timestamp option to specify the exact timestamp value (YYYYMMDDHHMMSS) to restore. Include the --create-db option if the database does not exist in the cluster. If you specified a custom --backup-dir to consolidate the backup files, include the same --backup-dir option when using gprestore to locate the backup files.

[gpadmin@whpg_cdw ~]$ psql -c "DROP DATABASE ww_sales";
DROP DATABASE
[gpadmin@whpg_cdw ~]$
[gpadmin@whpg_cdw ~]$ gprestore --timestamp 20250515182209 --backup-dir /tmp/single_file --create-db
20250515:18:35:09 gprestore:gpadmin:whpg_cdw:032941-[INFO]:-Restore Key = 20250515182209
20250515:18:35:09 gprestore:gpadmin:whpg_cdw:032941-[INFO]:-gpbackup version = 1.30.5
20250515:18:35:09 gprestore:gpadmin:whpg_cdw:032941-[INFO]:-gprestore version = 1.30.5
20250515:18:35:09 gprestore:gpadmin:whpg_cdw:032941-[INFO]:-Greenplum Database Version = 6.27.1 build commit:ab5a612bfdc355ad2d601860dfb70a47778c8dd7
20250515:18:35:09 gprestore:gpadmin:whpg_cdw:032941-[INFO]:-Creating database
20250515:18:35:10 gprestore:gpadmin:whpg_cdw:032941-[INFO]:-Database creation complete for: ww_sales
20250515:18:35:10 gprestore:gpadmin:whpg_cdw:032941-[INFO]:-Restoring pre-data metadata
Pre-data objects restored:  153 / 153 [=================================================] 100.00% 3s
20250515:18:35:14 gprestore:gpadmin:whpg_cdw:032941-[INFO]:-Pre-data metadata restore complete
Tables restored:  33 / 33 [============================================================] 100.00% 38s
20250515:18:35:52 gprestore:gpadmin:whpg_cdw:032941-[INFO]:-Data restore complete
20250515:18:35:52 gprestore:gpadmin:whpg_cdw:032941-[INFO]:-Restoring post-data metadata
20250515:18:35:52 gprestore:gpadmin:whpg_cdw:032941-[INFO]:-Post-data metadata restore complete
20250515:18:35:52 gprestore:gpadmin:whpg_cdw:032941-[INFO]:-Found neither /usr/local/greenplum-db-6.27.1/bin/gp_email_contacts.yaml nor /home/gpadmin/gp_email_contacts.yaml
20250515:18:35:52 gprestore:gpadmin:whpg_cdw:032941-[INFO]:-Email containing gprestore report /tmp/single_file/gpseg-1/backups/20250515/20250515182209/gprestore_20250515182209_20250515183509_report will not be sent
20250515:18:35:52 gprestore:gpadmin:whpg_cdw:032941-[INFO]:-Beginning cleanup
20250515:18:36:00 gprestore:gpadmin:whpg_cdw:032941-[INFO]:-Cleanup complete
20250515:18:36:00 gprestore:gpadmin:whpg_cdw:032941-[INFO]:-Restore completed successfully

gprestore does not attempt to restore global metadata for the WarehousePG Cluster by default. If this is required, include the --with-globals option.

By default, gprestore uses 1 connection to restore table data and metadata. If you have a large backup set which did not use the --single-data-file option, restore duration can be decreased by specifiying the number of parallel processes using the --jobs option. Depending on system resourceds and database size, this number can be tuned for each specific environment.

[gpadmin@whpg_cdw ~]$ psql -c "DROP DATABASE ww_sales";
DROP DATABASE
[gpadmin@whpg_cdw ~]$
[gpadmin@whpg_cdw ~]$ gprestore --timestamp 20250514202713 --create-db --jobs 4
20250515:18:40:40 gprestore:gpadmin:whpg_cdw:033527-[INFO]:-Restore Key = 20250514202713
20250515:18:40:40 gprestore:gpadmin:whpg_cdw:033527-[INFO]:-gpbackup version = 1.30.5
20250515:18:40:40 gprestore:gpadmin:whpg_cdw:033527-[INFO]:-gprestore version = 1.30.5
20250515:18:40:40 gprestore:gpadmin:whpg_cdw:033527-[INFO]:-Greenplum Database Version = 6.27.1 build commit:ab5a612bfdc355ad2d601860dfb70a47778c8dd7
20250515:18:40:40 gprestore:gpadmin:whpg_cdw:033527-[INFO]:-Creating database
20250515:18:40:41 gprestore:gpadmin:whpg_cdw:033527-[INFO]:-Database creation complete for: ww_sales
20250515:18:40:41 gprestore:gpadmin:whpg_cdw:033527-[INFO]:-Restoring pre-data metadata
Pre-data objects restored:  153 / 153 [=================================================] 100.00% 2s
20250515:18:40:43 gprestore:gpadmin:whpg_cdw:033527-[INFO]:-Pre-data metadata restore complete
Tables restored:  33 / 33 [============================================================] 100.00% 16s
20250515:18:41:00 gprestore:gpadmin:whpg_cdw:033527-[INFO]:-Data restore complete
20250515:18:41:00 gprestore:gpadmin:whpg_cdw:033527-[INFO]:-Restoring post-data metadata
20250515:18:41:00 gprestore:gpadmin:whpg_cdw:033527-[INFO]:-Post-data metadata restore complete
20250515:18:41:00 gprestore:gpadmin:whpg_cdw:033527-[INFO]:-Found neither /usr/local/greenplum-db-6.27.1/bin/gp_email_contacts.yaml nor /home/gpadmin/gp_email_contacts.yaml
20250515:18:41:00 gprestore:gpadmin:whpg_cdw:033527-[INFO]:-Email containing gprestore report /data/coordinator/gpseg-1/backups/20250514/20250514202713/gprestore_20250514202713_20250515184040_report will not be sent
20250515:18:41:00 gprestore:gpadmin:whpg_cdw:033527-[INFO]:-Beginning cleanup
20250515:18:41:00 gprestore:gpadmin:whpg_cdw:033527-[INFO]:-Cleanup complete
20250515:18:41:00 gprestore:gpadmin:whpg_cdw:033527-[INFO]:-Restore completed successfully
[gpadmin@whpg_cdw ~]$

Report Files

When performing a backup or restore operation, gpbackup and gprestore generate a report file. When email notification is configured, the email sent contains the contents of the report file. For information about email notification, see Configuring Email Notifications.

The report file is placed in the WarehousePG Coordinator backup directory. The report file name contains the timestamp of the operation. These are the formats of the gpbackup and gprestore report file names.

gpbackup_<backup_timestamp>_report
gprestore_<backup_timestamp>_<restore_timesamp>_report

For these example report file names, 20250518010000 is the timestamp of the backup and 20250530234643 is the timestamp of the restore operation.

gpbackup_20250518010000_report

gprestore_20250518010000_20180213115426_report

This backup directory on a WarehousePG Coordinator host contains both a gpbackup and gprestore report file.

[gpadmin@cdw 20250530234643]$ ls -ltr
total 2124
-r--r--r-- 1 gpadmin gpadmin 2120143 May 30 23:46 gpbackup_20250530234643_metadata.sql
-r--r--r-- 1 gpadmin gpadmin   38064 May 30 23:46 gpbackup_20250530234643_toc.yaml
-r--r--r-- 1 gpadmin gpadmin    1499 May 30 23:46 gpbackup_20250530234643_config.yaml
-r--r--r-- 1 gpadmin gpadmin    1837 May 30 23:46 gpbackup_20250530234643_report
-r--r--r-- 1 gpadmin gpadmin     539 May 31 00:05 gprestore_20250530234643_20250531000515_report

The contents of the report files are similar. This is an example of the contents of a gprestore report file.

WarehosuePG Report

timestamp key:           20250530234643
gpdb version:            6.27.1 build commit:ab5a612bfdc355ad2d601860dfb70a47778c8dd7
gprestore version:       1.30.5

database name:           test
command line:            gprestore --timestamp 20250530234643 --redirect-db test --create-db

backup segment count:    8
restore segment count:   8
start time:              Sat May 31 2025 00:05:15
end time:                Sat May 31 2025 00:05:57
duration:                0:00:42

restore status:          Success

Backup History Database

gpbackup stores details of each backup operation in a SQLite database found in $COORDINATOR_DATA_DIRECTORY/gpbackup_history.db. Details such as timestamps, command line options, incremental backup details and status are stored in this database. gpbackup_history.db is not backed up my gpbackup, but can be copied to a secondary location if a backup copy is desired.

gpbackup uses the metadata in gpbackup_history.db to create the backup/restore plan for an incremental backup sets when you run gpbackup with the --incremental option and do not specify the --from-timesamp option to indicate the backup that you want to use as the base backup of the incremental backup set. For information about incremental backups, refer to Incremental Backups with gpbackup and gprestore.

Filtering the Contents of a Backup or Restore

gpbackup backs up all schemas and tables in the specified database, unless you exclude or include individual schema or table objects with schema level or table level filter options.

The schema level options are

--include-schema
--include-schema-file
--exclude-schema
--exclude-schema-file
command-line options to gpbackup. For example, if the ww_customer database contains three schemas, na_customer, apac_customer, emea_customer, the following commands back up only the apac_customer and emea_customer schemas:

$ gpbackup --dbname ww_customer --exclude-schema na_customer

Multiple --include-schema options may be used in a gpbackup or multiple --exclude-schema options to filter 2 or many schemas

$ gpbackup --dbname ww_customer --include-schema apac_customer --include-schema emea_customer

An alternative to multiple command line options is to use --include-schema-file or --exclude-schema-file. Each line in the file defines a single schema, and the file cannot contain trailing lines.

/tmp/nw_states.schema contents

[gpadmin@whpg_cdw tmp]$ cat nw_states.schema
Washington
Oregon
Idaho
Montana
Wyoming
[gpadmin@whpg_cdw tmp]$

Example of the command:

gpbackup --dbname ww_customer --include-schema-file /tmp/nw_states.schema

Filtering included or excluded tables is similar process to schemas.

--include-table
--exclude-table
--include-table-file
--exclude-table-file

Options use the schema-name.table-name format as input on the command line, and in the text file. The individual table filtering options can be used multiple times, but --include-table and --exclude-table cannot both be used in the same command.

You can create a list of qualified table names in a text file. Each line in the file defines a single schema-name.table-name, and the file cannot contain trailing lines.

gpbackup --dbname ww_customer --include-table apac_customer.customer_fact

gpbackup --dbname ww_customer --exclude-table-file /tmp/exclude_tables.file

where /tmp/include_tables.file contents

[gpadmin@whpg_cdw tmp]$ cat exclude_tables.file
emea_customer.customer_fact
na_customer.customer_fact
[gpadmin@whpg_cdw tmp]$

Table and schema names containing upper case letters or spaces must be enclosed with double quotes.

[gpadmin@whpg_cdw tmp]$ cat exclude_tables_2.file
emea_customer.customer_fact
na_customer.customer_fact
na_customer."ZipCodes"
"WW_GEO".holidays
"WW_GEO"."time zones"
[gpadmin@whpg_cdw tmp]$

When --include-table or --include-table-file is specified on the command line, dependent objects are not automatically backed up or restored. Depenedent objects must be specified in your filter string or file. For example, if you back up or restore a view or materialized view, you must also list the table(s) the view or the materialized view require. If you backup or restore a table containing a sequence, you must also specify the sequence name.

Filtering by Leaf Partition

By default, gpbackup creates one file for each table on a data segment. When the --leaf-partition-data option is used, gpbackup will create one data file per leaf partition of a partitioned table, instead of a single file data file for the root table. You can also filter backups to specific leaf partitions by including the names of the leaf partitions names as you would a stand along table, using the schema_name.table_name format.

gpadmin=# \d+ ww_inventory
                                  Table "WW_GEO.ww_inventory"
        Column         |       Type        | Modifiers | Storage  | Stats target | Description
-----------------------+-------------------+-----------+----------+--------------+-------------
 prod_id               | integer           |           | plain    |              |
 prod_sku              | character varying |           | extended |              |
 prod_warehouse        | character varying |           | extended |              |
 prod_qty_on_hand      | integer           |           | plain    |              |
 prod_date_inventoried | date              |           | plain    |              |
Child tables: ww_inventory_1_prt_1,
              ww_inventory_1_prt_10,
              ww_inventory_1_prt_11,
              ww_inventory_1_prt_12,
              ww_inventory_1_prt_13,
              ww_inventory_1_prt_14,
              ww_inventory_1_prt_15,
              ww_inventory_1_prt_16,
              ww_inventory_1_prt_17,
              ww_inventory_1_prt_18,
              ww_inventory_1_prt_19,
              ww_inventory_1_prt_2,
              ww_inventory_1_prt_20,
              ww_inventory_1_prt_21,
              ww_inventory_1_prt_22,
              ww_inventory_1_prt_23,
              ww_inventory_1_prt_24,
              ww_inventory_1_prt_25,
              ww_inventory_1_prt_26,
              ww_inventory_1_prt_27,
              ww_inventory_1_prt_28,
              ww_inventory_1_prt_29,
              ww_inventory_1_prt_3,
              ww_inventory_1_prt_30,
              ww_inventory_1_prt_4,
              ww_inventory_1_prt_5,
              ww_inventory_1_prt_6,
              ww_inventory_1_prt_7,
              ww_inventory_1_prt_8,
              ww_inventory_1_prt_9
Distributed by: (prod_id)
Partition by: (prod_date_inventoried)

The following file /tmp/may_week1.include contains the partitions for the first week of May which will be included in our gpbackup

[gpadmin@whpg_cdw ~]$ cat /tmp/may_week1.include
"WW_GEO".ww_inventory_1_prt_1
"WW_GEO".ww_inventory_1_prt_2
"WW_GEO".ww_inventory_1_prt_3
"WW_GEO".ww_inventory_1_prt_4
"WW_GEO".ww_inventory_1_prt_5
"WW_GEO".ww_inventory_1_prt_6
"WW_GEO".ww_inventory_1_prt_7

Using the --include-table-file and --leaf-partition-data options, gpbackup will create one data file for each leaf partition specified in the input file

$ gpbackup --dbname ww_sales --include-table-file /tmp/may_week1.include --leaf-partition-data

The --exclude-table-file option and --leaf-partition-data are not compatible. Although you can specify leaf partition names in a file specified with --exclude-table-file, gpbackup ignores the partition names.

Filtering with `gprestore`

After creating a backup set with gpbackup, you can filter the schemas and tables that you want to restore from the backup set using the gprestore --include-schema and --include-table-file options. These options work in the same way as their gpbackup counterparts, but have the following restrictions:

The tables that you attempt to restore must not already exist in the database.

If you attempt to restore a schema or table that does not exist in the backup set, the gprestore does not run.

If you use the --include-schema option, gprestore cannot restore objects that have dependencies on multiple schemas.

If you use the --include-table-file option, gprestore does not create roles or set the owner of the tables. The utility restores table indexes and rules. Triggers are also restored but are not supported in WarehousePG.

The file that you specify with--include-table-file cannot include a leaf partition name, as it can when you specify this option with gpbackup. If you specified leaf partitions in the backup set, specify the partitioned table to restore the leaf partition data.

When restoring a backup set that contains data from some leaf partitions of a partitioned table, the partitioned table is restored along with the data for the leaf partitions. For example, you create a backup with the gpbackup option --include-table-file and the text file lists some leaf partitions of a partitioned table. Restoring the backup creates the partitioned table and restores the data only for the leaf partitions listed in the file.

Setting Up Email Alerts

gpbackup and gprestore can send email notifications via sendmail after a backup or restore run completes.

To have gpbackup or gprestore send out status email notifications, a gp_email_contacts.yaml file must exist in either home directory of the user running gpbackup or gprestore or the same directory as the utilities ($GPHOME/bin).

If the gp_email_contacts.yaml file is not present, the gpbackup/gprestore log file will have a message similar to:

20250530:23:46:52 gpbackup:gpadmin:cdw:022290-[INFO]:-Data backup complete
20250530:23:46:52 gpbackup:gpadmin:cdw:022290-[INFO]:-Skipped data backup of 24 external/foreign table(s).
20250530:23:46:52 gpbackup:gpadmin:cdw:022290-[INFO]:-See /home/gpadmin/gpAdminLogs/gpbackup_20250530.log for a complete list of skipped tables.
20250530:23:46:53 gpbackup:gpadmin:cdw:022290-[INFO]:-Found neither /usr/local/greenplum-db-6.27.1/bin/gp_email_contacts.yaml nor /home/gpadmin/gp_email_contacts.yaml
20250530:23:46:53 gpbackup:gpadmin:cdw:022290-[INFO]:-Email containing gpbackup report /data/coordinator/gpseg-1/backups/20250530/20250530234643/gpbackup_20250530234643_report will not be sent
20250530:23:46:53 gpbackup:gpadmin:cdw:022290-[INFO]:-Beginning cleanup
20250530:23:46:53 gpbackup:gpadmin:cdw:022290-[INFO]:-Cleanup complete
20250530:23:46:53 gpbackup:gpadmin:cdw:022290-[INFO]:-Backup completed successfully

If the gp_email_contacts.yaml file is present, can configured properly, a similar message will be printed to the logs:

20250514:20:27:23 gpbackup:gpadmin:whpg_cdw:027069-[INFO]:-/home/gpadmin/gp_email_contacts.yaml list found, /data/coordinator/gpseg-1/backups/20250514/20250514202713/gpbackup_20250514202713_report will be sent```

The $HOME/gp_email_contacts.yaml file will override any configurations found in the $GPHOME/bin/gp_email_contacts.yaml

The email subject line includes the utility name, timestamp, status, and the name of the WarehousePG Coordinator. This is an example subject line for a gpbackup email.

gpbackup 20250514202713 on whpg_cdw completed: Success

gprestore 20250515182209 on whpg_cdw completed: Failure

The email contains summary information about the operation including options, duration, and number of objects backed up or restored. For information about the contents of a notification email, see Report Files.

gp_email_contacts.yaml file format

The gpbackup and gprestore email notification YAML file gp_email_contacts.yaml uses indentation (spaces) to determine the document hierarchy and the relationships of the sections to one another. The use of white space is significant. White space should not be used simply for formatting purposes, and tabs should not be used at all.

Note: If the status parameters are not specified correctly, the utility does not issue a warning. For example, if the success parameter is misspelled and is set to true, a warning is not issued and an email is not sent to the email address after a successful operation. To ensure email notification is configured correctly, run tests with email notifications configured.

This is the format of the gp_email_contacts.yaml YAML file for gpbackup email notifications:

contacts:
  gpbackup:
  - address: name@domain
    status:
         success: [true | false]
         success_with_errors: [true | false]
         failure: [true | false]
  gprestore:
  - address: name@domain
    status:
         success: [true | false]
         success_with_errors: [true | false]
         failure: [true | false]

Email YAML File Sections

contacts: Required. The section that contains the gpbackup and gprestore sections. The YAML file can contain a gpbackup section, a gprestore section, or one of each.

gpbackup : Optional. Begins the gpbackup email section.

address : Required. At least one email address must be specified. Multiple email address parameters can be specified. Each address requires a status section.

Note

name@domainis a single, valid email address.

status : Required. Specify when the utility sends an email to the specified email address. The default is to not send email notification.

You specify sending email notifications based on the completion status of a backup or restore operation. At least one of these parameters must be specified and each parameter can appear at most once.

success : Optional. Specify if an email is sent if the operation completes without errors. If the value is true, an email is sent if the operation completes without errors. If the value is false (the default), an email is not sent.

success_with_errors : Optional. Specify if an email is sent if the operation completes with errors. If the value is true, an email is sent if the operation completes with errors. If the value is false (the default), an email is not sent.

failure : Optional. Specify if an email is sent if the operation fails. If the value is true, an email is sent if the operation fails. If the value is false (the default), an email is not sent.

gprestore : Optional. Begins the gprestore email section. This section contains the address and status parameters that are used to send an email notification after a gprestore operation. The syntax is the same as the gpbackup section.

Examples

This example YAML file specifies sending email to email addresses depending on the success or failure of an operation. For a backup operation, an email is sent to a different address depending on the success or failure of the backup operation. For a restore operation, an email is sent to single address only when the operation succeeds or completes with errors.

contacts:
  gpbackup:
  - address: dba_backup_success@whpg.io
    status:
      success:true
  - address: dba_backup_failure@whpg.io
    status:
      success_with_errors: true
      failure: true
  gprestore:
  - address: dba_restore_status@example.com
    status:
      success: true
      success_with_errors: true

Backup Files Details

A complete backup set for gpbackup includes multiple metadata files, supporting files, and CSV data files, each designated with the timestamp at which the backup was created.

By default, metadata and supporting files are stored on the WarehousePG master host in the directory $COORDINATOR_DATA_DIRECTORY/backups/YYYYMMDD/YYYYMMDDHHMMSS/. If you specify a custom backup directory, this same file path is created as a subdirectory of the backup directory. The following table describes the names and contents of the metadata and supporting files.

Warning:

All gpbackup metadata files are created with read-only permissions. Never delete or modify the metadata files for a gpbackup backup set. Doing so may render the backup files non-functional.

Coordinator Metadata Files

`gpbackup_<YYYYMMDDHHMMSS>_metadata.sql`

Contains global and database-specific metadata:

DDL for objects that are global to the WarehousePG cluster, and not owned by a specific database within the cluster.
DDL for objects in the backed-up database (specified with --dbname) that must be created before to restoring the actual data, and DDL for objects that must be created after restoring the data.

Global objects include:

Tablespaces
Databases
Database-wide configuration parameter settings (GUCs)
Resource group definitions
Resource queue definitions
Roles
GRANT assignments of roles to databases

Note

Note: Global metadata is not restored by default. You must include the --with-globals option to the gprestore command to restore global metadata.

Database-specific objects that must be created before to restoring the actual data include:

Session-level configuration parameter settings (GUCs)
Schemas
Procedural language extensions
Types
Sequences
Functions
Tables
Protocols
Operators and operator classes
Conversions
Aggregates
Casts
Views
Materialized Views (only view definition is backed up / restored, not data)
Constraints
Database-specific objects that must be created after restoring the actual data include:
Indexes
Rules
Triggers. (While WarehousePG does not support triggers, any trigger definitions that are present are backed up and restored.)

example:

CREATE TABLE uat.refund (
        returned_date_sk integer,
        returned_time_sk integer,
        item_sk integer,
        refunded_customer_sk integer,
        refunded_cdemo_sk integer,
        refunded_hdemo_sk integer,
) DISTRIBUTED RANDOMLY;

ALTER TABLE uat.refund OWNER TO gpadmin;

CREATE INDEX item_sk_cr_fee_idx ON uat.refund USING btree (item_sk, fee);

CREATE INDEX item_sk_idx ON uat.refund USING btree (item_sk);

`gpbackup_<YYYYMMDDHHMMSS>_toc.yaml`

Table of contents file, containing location information of the various object DDL in the gpbackup_<YYYYMMDDHHMMSS>_metadata.sql files

This file also contains the table names and OIDs used for locating the corresponding table data in CSV data files that are created on each segment.

example:

- schema: tpcds
  name: household_demographics
  oid: 37231
  attributestring: (hd_demo_sk,hd_income_band_sk,hd_buy_potential,hd_dep_count,hd_vehicle_count)
  rowscopied: 7200
  partitionroot: ""
  isreplicated: false
  distbyenum: false
- schema: tpcds
  name: income_band
  oid: 37238
  attributestring: (ib_income_band_sk,ib_lower_bound,ib_upper_bound)
  rowscopied: 20
  partitionroot: ""
  isreplicated: false
  distbyenum: false
- schema: tpcds
  name: inventory
  oid: 37245
  attributestring: (inv_date_sk,inv_item_sk,inv_warehouse_sk,inv_quantity_on_hand)
  rowscopied: 11745000
  partitionroot: ""
  isreplicated: false
  distbyenum: false

See Segment Data Files

`gpbackup_<YYYYMMDDHHMMSS>_report`

Contains information about the backup operation that is used to populate the email notice (if configured) that is sent after the backup completes. This file contains information such as:

Command-line options that were provided
Database that was backed up
Database version
Backup type

example:

WarehousePG Backup Report

timestamp key:         20250530232002
gpdb version:          6.27.1 build commit:ab5a612bfdc355ad2d601860dfb70a47778c8dd7
gpbackup version:      1.30.5

database name:         whpg_tpcds
command line:          gpbackup --dbname whpg_tpcds --no-compression --single-data-file --backup-dir /tmp/whpg_tpcds_backups
compression:           None
plugin executable:     None
backup section:        All Sections
object filtering:      None
includes statistics:   No
data file format:      Single Data File Per Segment
incremental:           False

start time:            Fri May 30 2025 23:20:02
end time:              Fri May 30 2025 23:20:13
duration:              0:00:11

backup status:         Success

database size:         1699 MB
segment count:         3

count of database objects in backup:
aggregates                   0
casts                        0
collations                   0
constraints                  0
conversions                  0
default privileges           0
database gucs                1
event triggers               0
extensions                   0
foreign data wrappers        0
foreign servers              0
functions                    0
indexes                      2

See Setting Up Email Alerts

`gpbackup_<YYYYMMDDHHMMSS>_config.yaml`

Contains metadata about the execution of the particular backup task, including:

gpbackup version
Database name
WarehousePG version
Additional option settings such as --no-compression, --compression-level, --metadata-only, --data-only, and --with-stats.

example:

backupdir: /tmp/whpg_tpcds_backups
backupversion: 1.30.5
compressed: false
compressiontype: gzip
databasename: whpg_tpcds
databaseversion: 6.27.1 build commit:ab5a612bfdc355ad2d601860dfb70a47778c8dd7
segmentcount: 8
dataonly: false
datedeleted: ""
excluderelations: []
excludeschemafiltered: false
excludeschemas: []
excludetablefiltered: false
includerelations: []
includeschemafiltered: false
includeschemas: []
includetablefiltered: false
incremental: false
leafpartitiondata: false
metadataonly: false
plugin: ""
pluginversion: ""
restoreplan:
- timestamp: "20250530232002"
  tablefqns:
  - tpcds.call_center
  - tpcds.catalog_page
  - tpcds.catalog_returns
  - tpcds.catalog_sales
  - tpcds.customer
  - tpcds.customer_address
  - tpcds.customer_demographics

Segment Data Files

By default, each segment creates one compressed CSV file for each table that is backed up on the segment. You can optionally specify the --single-data-file option to create a single data file on each segment. The files are stored in <seg_dir>/backups/YYYYMMDD/YYYYMMDDHHMMSS/.

If you specify a custom backup directory, segment data files are copied to this same file path as a subdirectory of the backup directory. If you include the --leaf-partition-data option, gpbackup creates one data file for each leaf partition of a partitioned table, instead of just one table for file.

By default, each table is backed up into a distinct file on the segment hosts: The file uses a name format gpbackup_<content_id>_<YYYYMMDDHHMMSS>_<oid>.gz where:

<content_id>is the content ID of the segment. <YYYYMMDDHHMMSS> is the timestamp of the gpbackup operation. <oid> is the object ID of the table.

default multiple data file example

-rw------- 1 gpadmin gpadmin      216 May 30 23:46 gpbackup_1_20250530234643_32812.zst
-rw------- 1 gpadmin gpadmin   177641 May 30 23:46 gpbackup_1_20250530234643_32822.zst
-rw------- 1 gpadmin gpadmin  3080557 May 30 23:46 gpbackup_1_20250530234643_32829.zst
-rw------- 1 gpadmin gpadmin 32449514 May 30 23:46 gpbackup_1_20250530234643_36476.zst
-rw------- 1 gpadmin gpadmin  1989827 May 30 23:46 gpbackup_1_20250530234643_37203.zst
-rw------- 1 gpadmin gpadmin   475551 May 30 23:46 gpbackup_1_20250530234643_37210.zst
-rw------- 1 gpadmin gpadmin  3002507 May 30 23:46 gpbackup_1_20250530234643_37217.zst
-rw------- 1 gpadmin gpadmin   535332 May 30 23:46 gpbackup_1_20250530234643_37224.zst
-rw------- 1 gpadmin gpadmin     8895 May 30 23:46 gpbackup_1_20250530234643_37231.zst
-rw------- 1 gpadmin gpadmin       74 May 30 23:46 gpbackup_1_20250530234643_37238.zst
-rw------- 1 gpadmin gpadmin 19518846 May 30 23:46 gpbackup_1_20250530234643_37245.zst
-rw------- 1 gpadmin gpadmin   606613 May 30 23:46 gpbackup_1_20250530234643_37459.zst
-rw------- 1 gpadmin gpadmin     4595 May 30 23:46 gpbackup_1_20250530234643_37466.zst
-rw------- 1 gpadmin gpadmin      177 May 30 23:46 gpbackup_1_20250530234643_37473.zst
-rw------- 1 gpadmin gpadmin      152 May 30 23:46 gpbackup_1_20250530234643_37480.zst
-rw------- 1 gpadmin gpadmin      327 May 30 23:46 gpbackup_1_20250530234643_37487.zst
-rw------- 1 gpadmin gpadmin  4710343 May 30 23:46 gpbackup_1_20250530234643_37494.zst

--single-data-file example

All table data for a particular segment is written to a single file:

gpbackup_<content_id>_<YYYYMMDDHHMMSS>

With a corresponding table of contents files:

gpbackup_<content_id>_<YYYYMMDDHHMMSS>_toc.yaml

-rw-rw-r-- 1 gpadmin gpadmin 417025744 May 30 23:20 gpbackup_0_20250530232002
-r--r--r-- 1 gpadmin gpadmin      2035 May 30 23:20 gpbackup_0_20250530232002_toc.yaml

The metadata file gpbackup_<YYYYMMDDHHMMSS>_toc.yaml references this <oid> to locate the data for a specific table in a schema.

You can optionally specify the gzip compression level (from 1-9) using the --compression-level option, or disable compression entirely with --no-compression. If you do not specify a compression level, gpbackup uses compression level 1 by default.

Return Codes

One of these codes is returned after gpbackup or gprestore completes.

0 – Backup or restore completed with no problems
1 – Backup or restore completed with non-fatal errors. See log file for more information.
2 – Backup or restore failed with a fatal error. See log file for more information.

Supported WHPG versions

The WarehousePG provided gpbackup and gprestore utilities are compatible with WarehousePG versions

6.27.1 or later
7.2.1-WHPG or later

Limitations

gpbackup and gprestore have the following limitations:

If you create an index on a parent partitioned table, gpbackup does not back up that same index on child partitioned tables of the parent, as creating the same index on a child would cause an error. However, if you exchange a partition, gpbackup does not detect that the index on the exchanged partition is inherited from the new parent table. In this case, gpbackup backs up conflicting CREATE INDEX statements, which causes an error when you restore the backup set.

You can execute multiple instances of gpbackup, but each execution requires a distinct timestamp.

Database object filtering is currently limited to schemas and tables.

When backing up a partitioned table where some or all leaf partitions are in different schemas from the root partition, the leaf partition table definitions, including the schemas, are backed up as metadata. This occurs even if the backup operation specifies that schemas that contain the leaf partitions should be excluded. To control data being backed up for this type of partitioned table in this situation, use the --leaf-partition-data option.

If the --leaf-partition-data option is not specified, the leaf partition data is also backed up even if the backup operation specifies that the leaf partition schemas should excluded. If the --leaf-partition-data option is specified, the leaf partition data is not be backed up if the backup operation specifies that the leaf partition schemas should excluded. Only the metadata for leaf partition tables are backed up. If you use the gpbackup --single-data-file option to combine table backups into a single file per segment, you cannot perform a parallel restore operation with gprestore (cannot set --jobs to a value higher than 1).

You cannot use the --exclude-table-file with --leaf-partition-data. Although you can specify leaf partition names in a file specified with --exclude-table-file, gpbackup ignores the partition names.

Backing up a database with gpbackup while simultaneously running DDL commands might cause gpbackup to fail, in order to ensure consistency within the backup set. For example, if a table is dropped after the start of the backup operation, gpbackup exits and displays the error message ERROR: relation <schema.table> does not exist.

gpbackup might fail when a table is dropped during a backup operation due to table locking issues. gpbackup generates a list of tables to back up and acquires an ACCESS SHARED lock on the tables. If an EXCLUSIVE LOCK is held on a table, gpbackup acquires the ACCESS SHARED lock after the existing lock is released. If the table no longer exists when gpbackup attempts to acquire a lock on the table, gpbackup exits with the error message.

For tables that might be dropped during a backup, you can exclude the tables from a backup with a gpbackup table filtering option such as --exclude-table or --exclude-schema.

A backup created with gpbackup can only be restored to a WarehousePG cluster with the same number of segment instances as the source cluster. If you run gpexpand to add segments to the cluster, backups you made before starting the expand cannot be restored after the expansion has completed.

Parent topic: WarehousePG Administrator Guide

Backing up WarehousePG with gpbackup and gprestore ​

Parallel Backup with gpbackup and gprestore ​

Objects in a backup set ​

Backup and Restore Workflow ​

Full Backup ​

Full Restore ​

Report Files ​

Backup History Database ​

Filtering the Contents of a Backup or Restore ​

Filtering by Leaf Partition ​

Filtering with gprestore ​

Setting Up Email Alerts ​

gp_email_contacts.yaml file format ​

Email YAML File Sections ​

Examples ​

Backup Files Details ​

Coordinator Metadata Files ​

gpbackup_<YYYYMMDDHHMMSS>_metadata.sql ​

gpbackup_<YYYYMMDDHHMMSS>_toc.yaml ​

gpbackup_<YYYYMMDDHHMMSS>_report ​

gpbackup_<YYYYMMDDHHMMSS>_config.yaml ​

Segment Data Files ​

Return Codes ​

Supported WHPG versions ​

Limitations ​

Backing up WarehousePG with `gpbackup` and `gprestore`

Parallel Backup with gpbackup and gprestore

Objects in a backup set

Backup and Restore Workflow

Full Backup

Full Restore

Report Files

Backup History Database

Filtering the Contents of a Backup or Restore

Filtering by Leaf Partition

Filtering with `gprestore`

Setting Up Email Alerts

gp_email_contacts.yaml file format

Email YAML File Sections

Examples

Backup Files Details

Coordinator Metadata Files

`gpbackup_<YYYYMMDDHHMMSS>_metadata.sql`

`gpbackup_<YYYYMMDDHHMMSS>_toc.yaml`

`gpbackup_<YYYYMMDDHHMMSS>_report`

`gpbackup_<YYYYMMDDHHMMSS>_config.yaml`

Segment Data Files

Return Codes

Supported WHPG versions

Limitations
