WarehousePG Memory Overview

---

Memory is a key resource for a WarehousePG cluster and, when used efficiently, can ensure high performance and throughput. This topic describes how segment host memory is allocated between segments and the options available to administrators to configure memory.

A WarehousePG segment host runs multiple PostgreSQL instances, all sharing the host's memory. The segments have an identical configuration and they consume similar amounts of memory, CPU, and disk IO simultaneously, while working on queries in parallel.

For best query throughput, the memory configuration should be managed carefully. There are memory configuration options at every level in WarehousePG, from operating system parameters, to managing resources with resource queues and resource groups, to setting the amount of memory allocated to an individual query.

Segment Host Memory Overview

On a WarehousePG segment host, the available host memory is shared among all the processes running on the computer, including the operating system, WarehousePG segment instances, and other application processes. Administrators must determine what WarehousePG and non-WarehousePG processes share the hosts' memory and configure the system to use the memory efficiently. It is equally important to monitor memory usage regularly to detect any changes in the way host memory is consumed by WarehousePG or other processes.

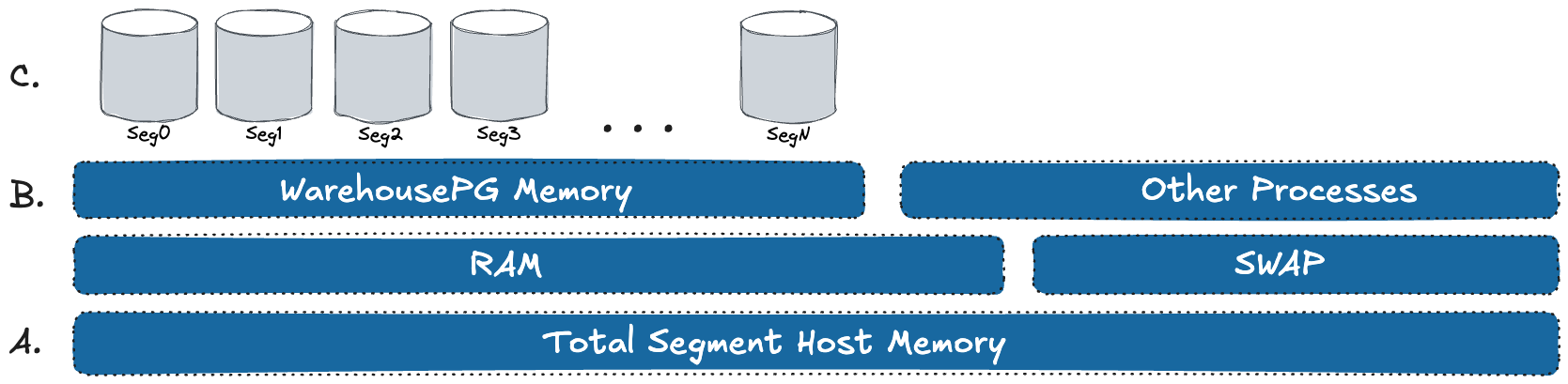

The following figure illustrates how memory is consumed on a WarehousePG segment host when resource queue-based resource management is active.

Beginning at the bottom of the illustration, the line labeled A represents the total host memory. The line directly above line A shows that the total host memory comprises both physical RAM and swap space.

The line labelled B shows that the total memory available must be shared by WarehousePG and all other processes on the host. Non-WarehousePG processes include the operating system and any other applications, for example system monitoring agents. Some applications may use a significant portion of memory and, as a result, you may have to adjust the number of segments per WarehousePG host or the amount of memory per segment.

Each segment on line labelled C gets an equal share of the WarehousePG Memory.

Within a segment, the currently active resource management scheme, Resource Queues or Resource Groups, governs how memory is allocated to run a SQL statement. These constructs allow you to translate business requirements into execution policies in your WarehousePG cluster and to guard against queries that could degrade performance. For an overview of resource groups and resource queues, refer to Managing Resources.

Configuring Segment Host Memory

Host memory is the total memory shared by all applications on the segment host. You can configure the amount of host memory using any of the following methods:

• Add more RAM to the nodes to increase the physical memory.
• Allocate swap space to increase the size of virtual memory.
• Adjust the kernel parameter vm.overcommit_ratio to configure how the operating system handles large memory allocation requests.

The physical RAM and OS configuration are usually managed by the platform team and system administrators. See the WarehousePG Installation Guide for the recommended kernel parameters and for how to set the /etc/sysctl.conf file parameters.

The amount of memory to reserve for the operating system and other processes is workload dependent. The minimum recommendation for operating system memory is 32GB, but if there is much concurrency in WarehousePG, increasing to 64GB of reserved memory may be required. The largest user of operating system memory is SLAB, which increases as WarehousePG concurrency and the number of sockets used increases.

The vm.overcommit_memory kernel parameter should always be set to 2, the only safe value for WarehousePG.

The vm.overcommit_ratio kernel parameter sets the percentage of RAM that is used for application processes, the remainder reserved for the operating system. The default for Red Hat is 50 (50%). Setting this parameter too high may result in insufficient memory reserved for the operating system, which can cause segment host failure or database failure. Leaving the setting at the default of 50 is generally safe, but conservative. Setting the value too low reduces the amount of concurrency and the complexity of queries you can run at the same time by reducing the amount of memory available to WarehousePG. When increasing vm.overcommit_ratio, it is important to remember to always reserve some memory for operating system activities.

To calculate a safe value for vm.overcommit_ratio, first determine the total memory available to WarehousePG processes, gp_vmem.

• If the total system memory is less than 256 GB, use this formula:

  gp_vmem = ((SWAP + RAM) – (7.5GB + 0.05 * RAM)) / 1.7

• If the total system memory is equal to or greater than 256 GB, use this formula:

  gp_vmem = ((SWAP + RAM) – (7.5GB + 0.05 * RAM)) / 1.17

where SWAP is the swap space on the host in GB, and RAM is the number of GB of RAM installed on the host.

Use gp_vmem to calculate the vm.overcommit_ratio value with this formula:

vm.overcommit_ratio = (RAM - 0.026 * gp_vmem) / RAM

Configuring WarehousePG Memory

WarehousePG Memory is the amount of memory available to all WarehousePG segment instances.

When you set up the WarehousePG cluster, you determine the number of primary segments to run per host and the amount of memory to allocate for each segment. Depending on the CPU cores, amount of physical RAM, and workload characteristics, the number of segments is usually a value between 4 and 8. With segment mirroring enabled, it is important to allocate memory for the maximum number of primary segments running on a host during a failure. For example, if you use the default grouping mirror configuration, a segment host failure doubles the number of acting primaries on the host that has the failed host's mirrors. Mirror configurations that spread each host's mirrors over multiple other hosts can lower the maximum, allowing more memory to be allocated for each segment. For example, if you use a block mirroring configuration with 4 hosts per block and 8 primary segments per host, a single host failure would cause other hosts in the block to have a maximum of 11 active primaries, compared to 16 for the default grouping mirror configuration.

The gp_vmem_protect_limit server configuration parameter value identifies the amount of memory to allocate to each segment. This value is estimated by calculating the memory available for all WarehousePG processes and dividing by the maximum number of primary segments during a failure. If gp_vmem_protect_limit is set too high, queries can fail. Use the following formula to calculate a safe value for gp_vmem_protect_limit, using the gp_vmem value that you calculated earlier.

gp_vmem_protect_limit = gp_vmem / max_acting_primary_segments

where max_acting_primary_segments is the maximum number of primary segments that could be running on a host when mirror segments are activated due to a host or segment failure.

Resource queues and resource groups expose additional configuration parameters that enable you to further control and refine the amount of memory allocated for queries.

Example Memory Configuration Calculations

This section provides example memory calculations for resource queues and resource groups for a WarehousePG cluster with the following specifications:

• Total RAM = 256GB
• Swap = 64GB
• 8 primary segments and 8 mirror segments per host, in blocks of 4 hosts
• Maximum number of primaries per host during failure is 11

The vm.overcommit_ratio calculation for this example system follows:

gp_vmem = ((SWAP + RAM) – (7.5GB + 0.05 * RAM)) / 1.7
        = ((64 + 256) - (7.5 + 0.05 * 256)) / 1.7
        = 176

vm.overcommit_ratio = (RAM - (0.026 * gp_vmem)) / RAM
                    = (256 - (0.026 * 176)) / 256
                    = .982

You would set vm.overcommit_ratio of the example system to 98.

The gp_vmem_protect_limit calculation follows:

gp_vmem_protect_limit = gp_vmem / maximum_acting_primary_segments
                      = 176 / 11
                      = 16GB
                      = 16384MB

You would set the gp_vmem_protect_limit server configuration parameter on the example system to 16384.
